P-162-A Edison STANDARD Mandrel Shaft ROLLER BEARINGs (Bushings)

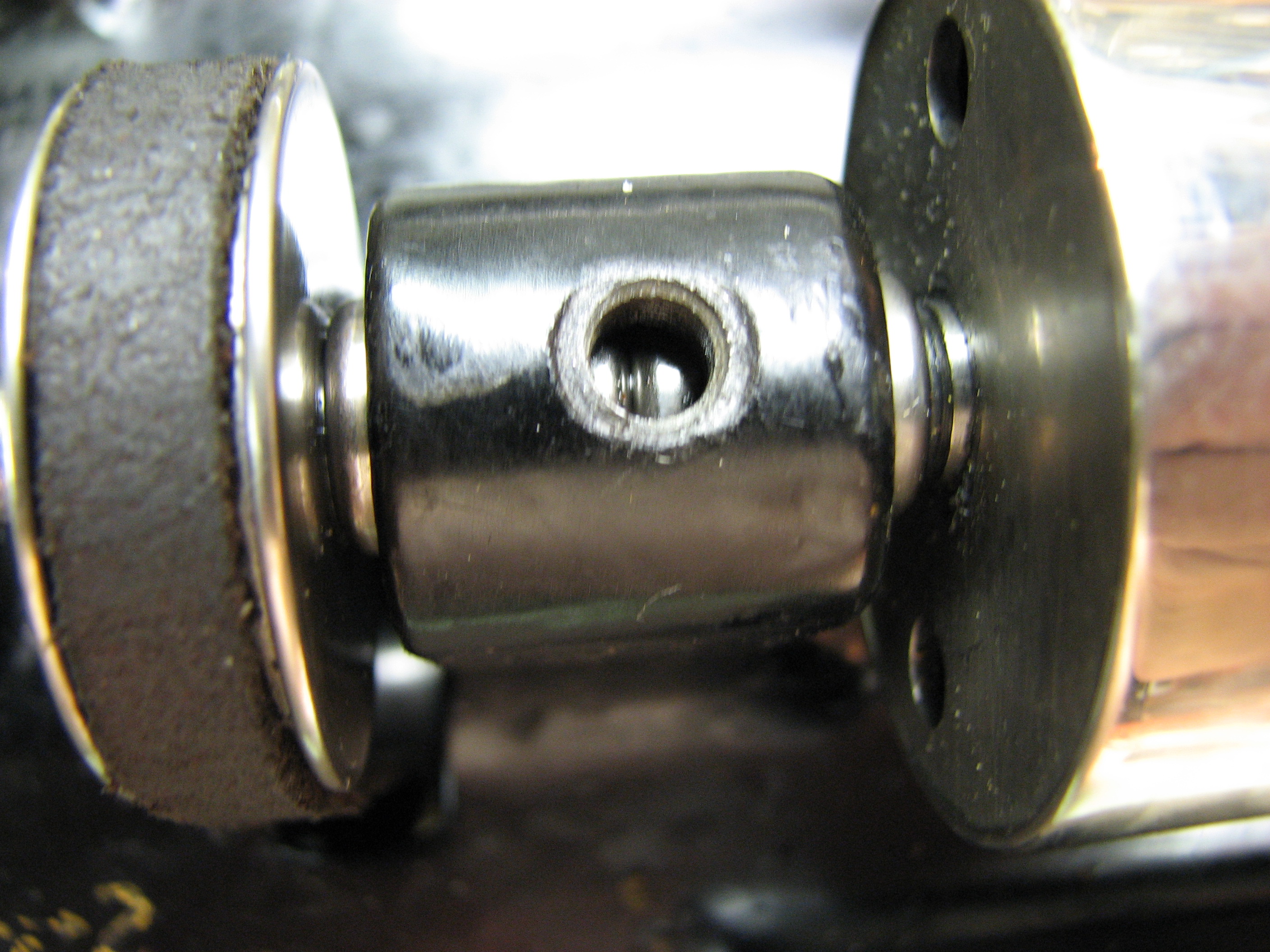

P-162-A Edison STANDARD mandrel shaft needle roller bearings. Replaces swollen pot metal bearing in the Edison STANDARD Model D (also other Edison STANDARDs that do not have the end gate) phonograph (not the HOME Model D). NEW. Tight fitting, insert one from each side. Lubricate before first use. One set of two for $19.00. Second photo shows large view of installed mandrel shaft bearings. Third photo shows close-up of installed mandrel shaft bearings.

After removing the original bad pot metal bearing and cleaning out the shaft opening, the new mandrel shaft roller bearings are installed one at a time, first one from the left, then the one from the right. The left one is installed to the exact position desired, then the right bearing is installed next to the first bearing. Bearings are installed by using a bolt, washers, and a nut [SEE: P-162-AX if you need this grouping] to draw the bearings into the shaft. Do NOT use a hammer! Detailed instructions with photos are provided.

Click here to download installation instructions.
